Turning off those light sources!

An outstanding issue with datasets exported from Revit in the *NWC format is the light source object. Even when you turn it off in Revit before exporting, it stills shows up in Navisworks. This will cause problems if you are running Clash Detective with tight tolerances and keep getting 'hits' or false positives because of the light source object. So how do you turn it off without having to scroll through the selection tree?

Use a Search Set! Search Sets and Selection Sets are by far the most valuable tool in Navisworks. Anyone who has taken one of my classes knows that I tend to harp on this subject ad nauseum.

The question is, how do we set up the search set? The answer is through a material filter called Default Light Source.

Example: In the image below, you see how the light appears in a Revit project before export. Remember, even if I turn this off before exporting using Visiblity Graphics (VG), it will still show up in the Navisworks NWC file upon appending the project file.

When I open the NWC file in Navisworks, the light fixtures will look like this:



How can we quickly turn off all of the lights sources without having to drill down in the Selection Tree and pick each one individually? (A very low value, mind numbing task!).

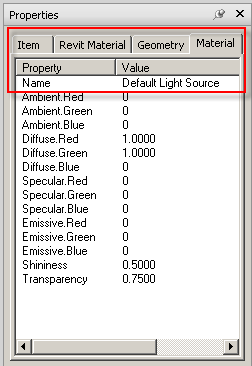

If you drill down the selection tree until you get to the nested light source object you will see a nested object called "Solid". If you look at the objects properities in the properties window, you will see that it shows up on the Material Tab and has a Property Name value of Default Light Source.




Using the Find Items Tool we can set the search field as follows and then save this as a Search Set. This will enable us to quickly turn off the light sources or set up rules in Detective to ignore items in a specific Selection Set.

Happy Hunting...!





9 comments:

  1. Cool! This is such a hassle in Navisworks. Is there a way to get to the web object that sometimes comes in with Revit MEP datasets?

    ReplyDelete
  2. Hi Richard! Yes, there is actually. The trick is when you bring in the light sources from Revit MEP you need to adjust the performance settings of the of the model in the Options Editor.

    You will find this under Options>Model>Performance.

    In the On Load section click the dropdown menu next to Collapse on Convert. The default is set to 'Composite Objects.' Change it to 'None'. In effect, this will prevent objects from coming into Navisworks as groups or blocks if you will. You will then be able to select the light web object. It actually comes in as a mesh if you drill down in the selection tree.

    ReplyDelete
  3. Great blog teresa, We have the opposite problem, we want to show access to change light bulbs and (on mechanical items) access to change out parts like, belts, compressors, coils, access to fire dampers etc) Is it best to have these special parameters added to each family within revit rfa or withing Navis, is there an easy way to model a clearance space required, so the other trades know to stay out of these areas?
